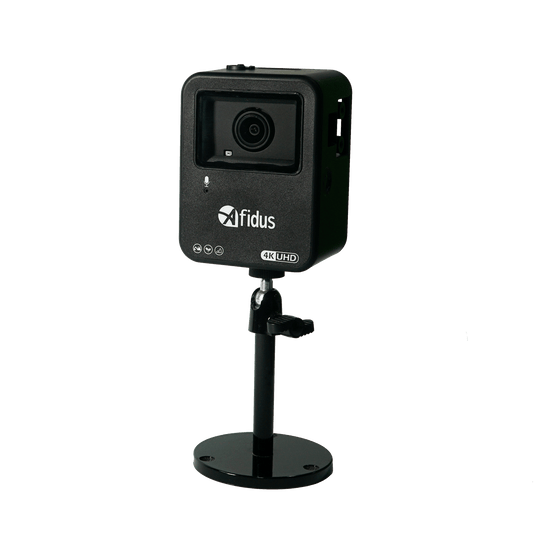

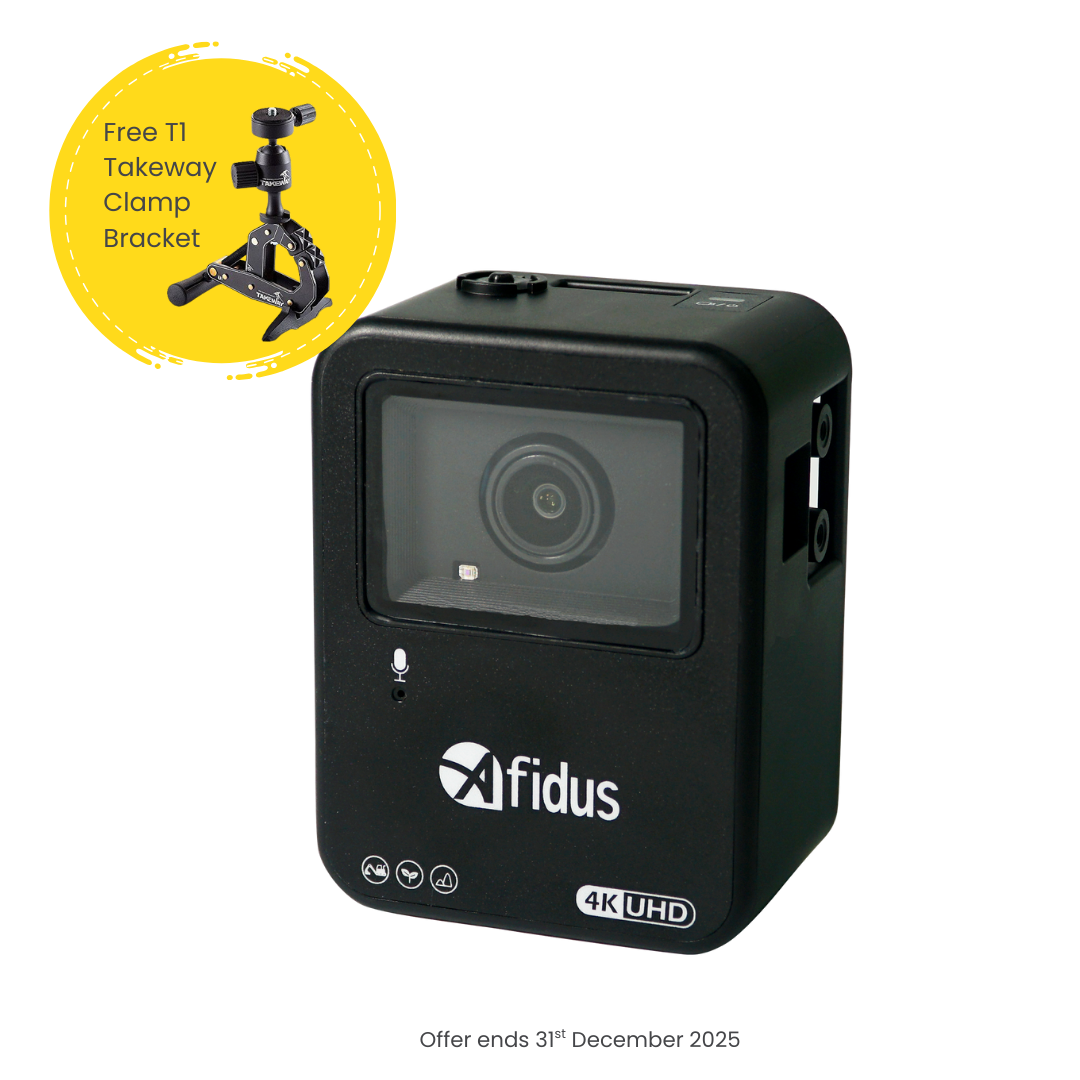

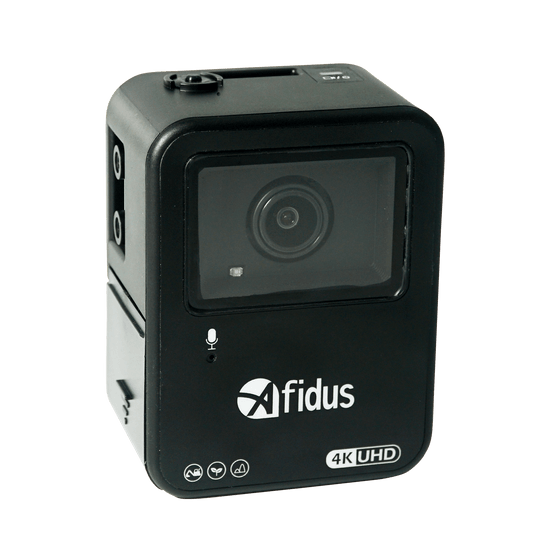

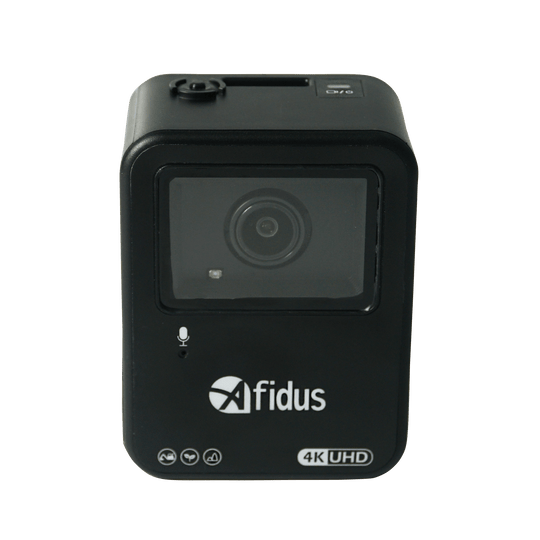

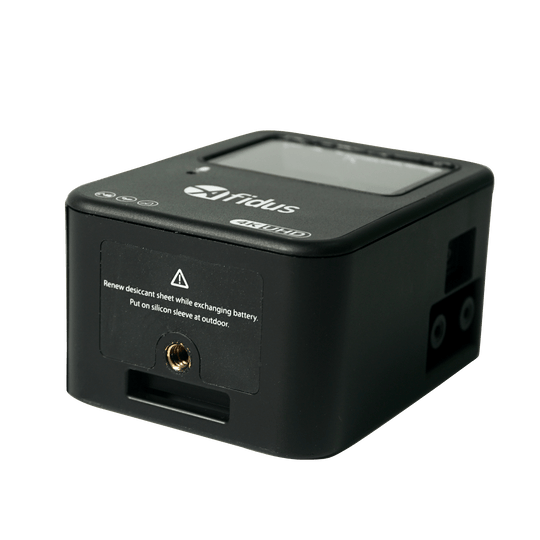

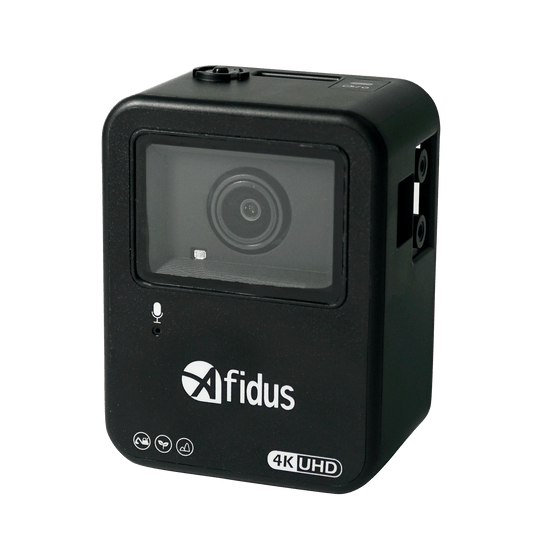

Afidus ATL-800i 4K Construction Timelapse Camera

The Afidus ATL-800i 4K Construction Timelapse Camera is a professional battery-powered timelapse camera designed for long-term construction projects, building site progress monitoring and outdoor recording applications.

Featuring a 4K Sony Starvis image sensor, motorised zoom and focus, IPX5 weather protection and innovative Wi-Fi Awaken technology, the ATL-800i captures high-resolution timelapse footage without requiring a permanent mains power connection.

With four AA batteries, the camera can operate for up to 112 days at a 10-minute recording interval, making it a practical solution for projects that need to be documented over several weeks or months.

Afidus ATL-800i: At a Glance

Who Is the Afidus ATL-800i Best For?

The Afidus ATL-800i is particularly well suited to customers who need high-resolution timelapse footage from a compact, battery-powered camera.

Its main applications include:

• Construction site monitoring: Record building progress from groundworks and foundations through to project completion.

• Commercial developments: Create professional visual records of construction and redevelopment projects.

• Infrastructure projects: Capture the progress of engineering, civil works and outdoor installations.

• Events and exhibitions: Document events, exhibitions and temporary installations over extended periods.

• Nature and wildlife: Record natural activity, changing landscapes and outdoor environments.

• Long-term installations: Capture projects where access to mains electricity is limited or unavailable.

Key Features of the Afidus ATL-800i

4K UHD Resolution with Sony Starvis Sensor

The ATL-800i captures footage at 3840 × 2160 resolution at 30 frames per second.

Its Sony Starvis image sensor delivers detailed footage, making it particularly useful for construction projects where customers want to retain clear visual records of site progress. The 4K resolution also provides greater detail than standard Full HD 1080p cameras.

Motorised Zoom and Focus

The ATL-800i features a motorised 2.8–8mm zoom lens, equivalent to approximately 16–35mm on a DSLR camera. The 120° horizontal field of view makes it suitable for capturing wide construction sites, while the adjustable zoom allows users to refine the framing for their individual installation. Zoom and focus can be controlled through the Afidus mobile application.

Extended Battery Life

One of the main advantages of the ATL-800i is its low-power recording technology.

Using four AA batteries, the manufacturer specifies the following approximate recording durations:

• Up to 40 days at 3-minute intervals.

• Up to 60 days at 5-minute intervals.

• Up to 112 days at 10-minute intervals.

Actual battery life depends on recording settings, battery quality and environmental conditions.

For longer projects, the camera also supports external 5V USB power, allowing a compatible power bank or suitable external power solution to extend recording duration.

Wi-Fi Awaken Technology

The ATL-800i introduces Wi-Fi Awaken, allowing a compatible smartphone to wake the camera remotely when a mobile hotspot is enabled.

The connection works within approximately 5 metres of the camera.

This is particularly useful for construction site installations because users can check the camera and its recording data without having to remove it from its mounting position.

Important: Wi-Fi Awaken is a short-range connection, not continuous remote monitoring over the internet. The smartphone needs to be within the supported operating distance.

IPX5 Weather Protection

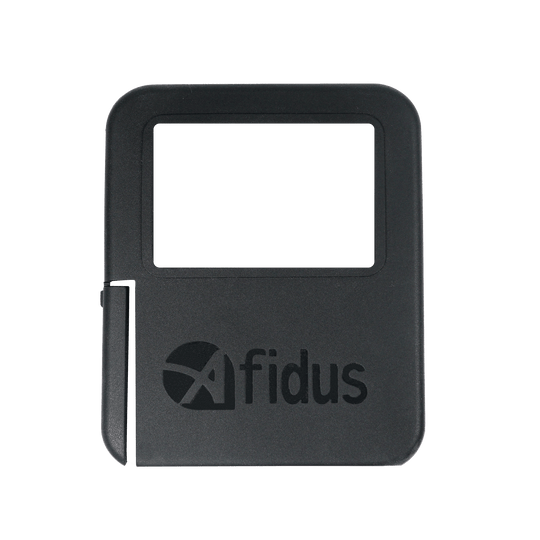

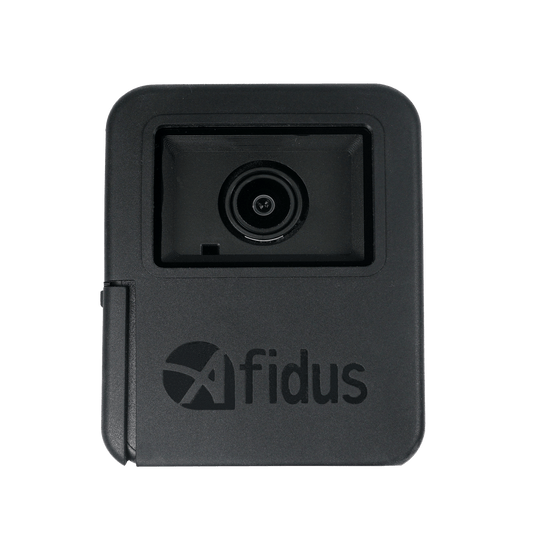

The ATL-800i has an IPX5 weather protection rating when used with its silicone sleeve.

This makes it suitable for outdoor timelapse installations exposed to rain and water spray.

For exposed construction environments, we recommend considering a suitable mounting position and additional protective accessories such as the optional stainless steel sunshield.

Image Alignment

The Afidus application includes an image alignment feature to help maintain consistent camera composition when the camera is relocated or batteries are changed.

This is especially useful for long-term construction projects where consistent framing is important when creating the final timelapse video.

Technical Specifications

Recommended Accessories for the Afidus ATL-800i

The right accessories can make a significant difference to the reliability and duration of a construction timelapse installation.

External Power Bank

For projects that need to run longer than the internal batteries allow, an external USB power bank can extend recording duration.

Solar Power Solution

For suitable outdoor installations, a compatible solar power and battery arrangement can help provide ongoing power without relying on frequent battery changes. The installation must be designed around the camera's 5V power requirements and actual power consumption.

Stainless Steel Sunshield

An optional sunshield can provide additional protection for cameras installed in exposed outdoor locations.

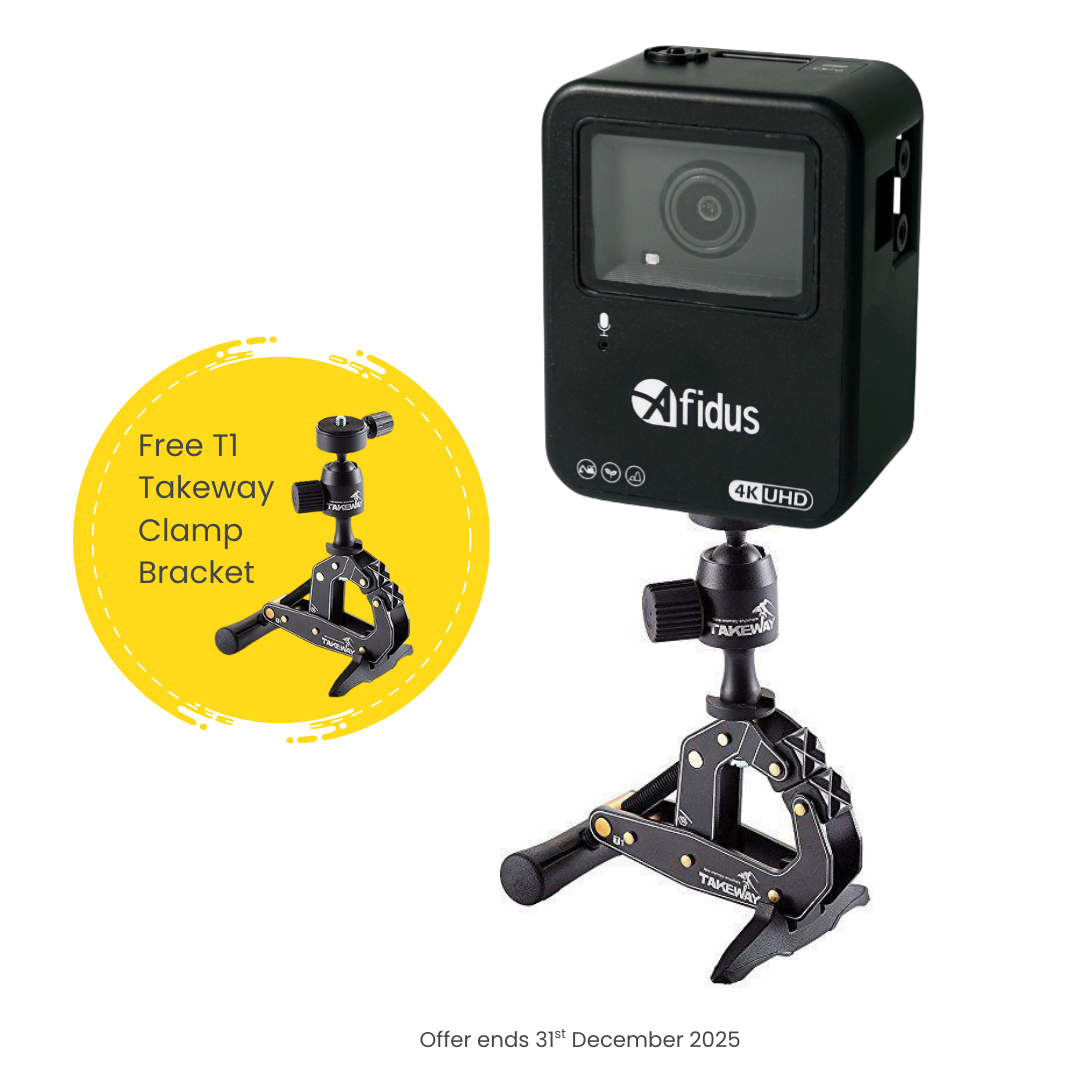

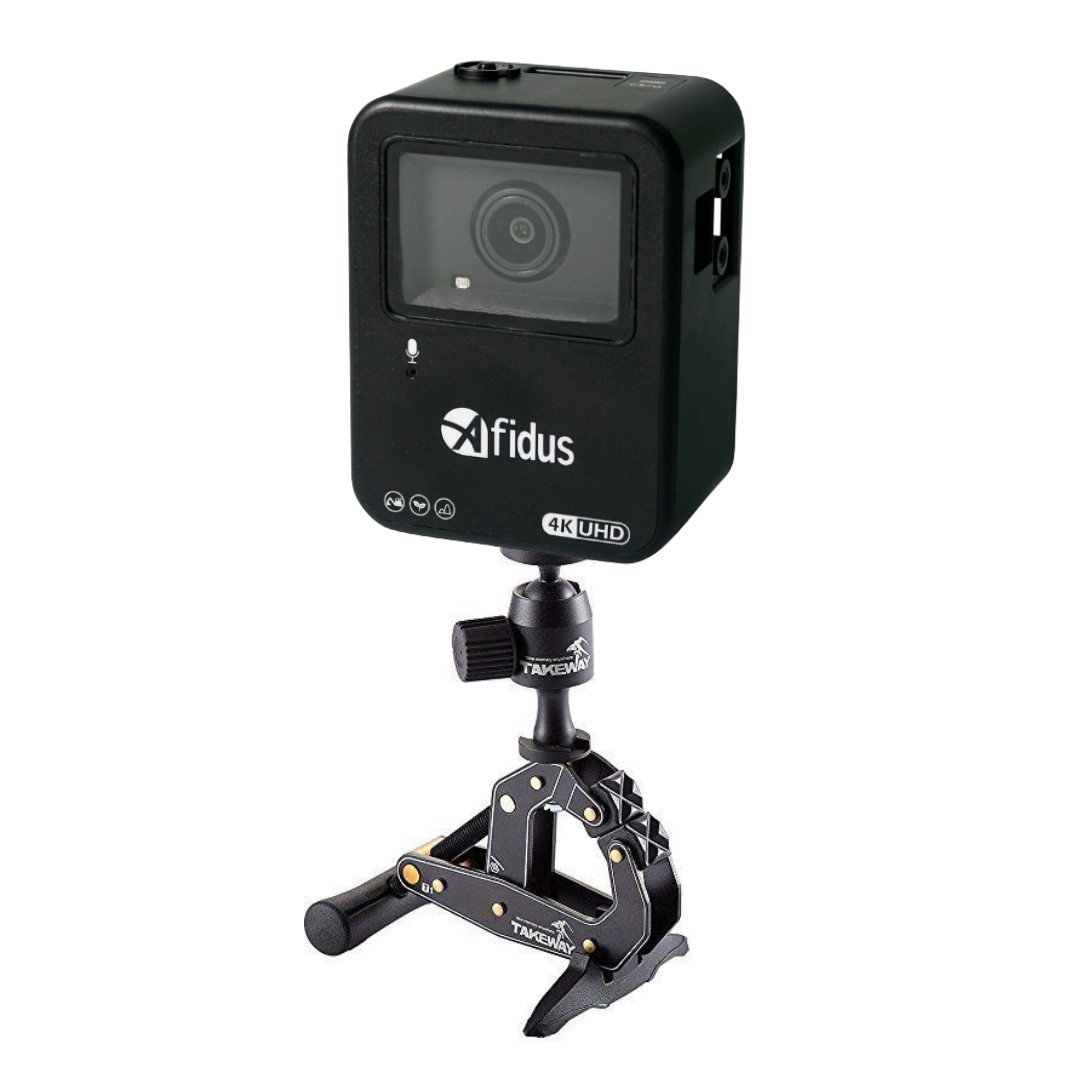

Mounting Brackets

A suitable mounting bracket helps secure the camera and maintain a consistent viewing angle throughout the project.

How Does the Afidus ATL-800i Compare to Other Timelapse Cameras?

The ATL-800i is a strong option for customers who want 4K resolution, motorised zoom and a long battery operating period without moving into a more expensive cloud-connected camera system.

Compared with standard 1080p battery-powered timelapse cameras, the ATL-800i offers higher resolution and adjustable optical zoom. Compared with professional solar-powered cameras, it offers a simpler battery-powered installation, although it does not provide the same continuous remote monitoring and cloud-based functionality.

The best camera depends on the project duration, image quality requirements, available power and whether remote monitoring is essential.

Explore our Timelapse Camera Comparison Chart to compare available models.

Frequently Asked Questions

How long does the Afidus ATL-800i battery last?

The ATL-800i can operate for up to approximately 112 days using four AA batteries when recording at 10-minute intervals. The manufacturer also specifies approximately 60 days at five-minute intervals and 40 days at three-minute intervals. Actual performance varies with battery quality and recording conditions.

Does the Afidus ATL-800i record in 4K?

Yes. The ATL-800i records 4K UHD video at 3840 × 2160 resolution and 30 frames per second. It also supports Full HD 1920 × 1080 recording.

Can I access the Afidus ATL-800i remotely?

The ATL-800i features Wi-Fi Awaken, which allows a compatible smartphone to wake and connect to the camera within approximately five metres when a hotspot is enabled. It is not a cloud-connected camera and does not provide unlimited-distance remote monitoring.

Is the Afidus ATL-800i waterproof?

The camera has an IPX5 weather protection rating when used with its silicone sleeve. This provides protection against water jets, but it is not designed to be submerged in water. Suitable installation and additional protection are recommended in exposed environments.

Can I power the Afidus ATL-800i using a power bank?

Yes. The camera supports external 5V 1A USB power. A compatible power bank can be used to extend recording duration beyond the internal AA batteries.

What memory card does the Afidus ATL-800i use?

The ATL-800i uses a MicroSD memory card with support for capacities up to 128GB.

Can I adjust the zoom on the Afidus ATL-800i?

Yes. The camera has a motorised 2.8–8mm zoom lens, with zoom and focus adjustments available through the Afidus application.

Is the Afidus ATL-800i suitable for construction sites?

Yes. Its 4K resolution, extended battery life, adjustable zoom and IPX5 weather protection make it suitable for many construction progress monitoring applications. For longer projects, we recommend considering an external power solution and appropriate mounting protection.

Why Buy the Afidus ATL-800i from Timelapse Store?

The Timelapse Store is a UK specialist supplier of professional timelapse cameras, construction monitoring equipment and power solutions.

We understand that choosing a camera is only part of planning a successful timelapse project. Power, mounting, recording intervals and installation conditions all affect the final result.

When you purchase from Timelapse Store, you benefit from:

• Specialist advice on choosing the right timelapse camera.

• Pre-sales guidance on project requirements and installation.

• Advice on external batteries and solar power solutions.

• A 12-month guarantee.

• Price matching.

• Pre-sales and after-sales technical support.

Need help deciding whether the Afidus ATL-800i is right for your project? Call our team on 0330 058 8318 or email hello@timelapsestore.co.uk.

Get in touch for delivery information.
